Electrical Systems

The electrical systems of the Meridian Basal are designed to efficiently distribute power generated by the nuclear reactor to all of the ship’s systems. The ship uses a combination of AC and DC power distribution systems to ensure that all systems receive the appropriate type of power for their needs. The main, service, and emergency electrical systems all operate DC and AC lines, with the AC lines having a frequency of 50Hz. The ship’s electrical systems are designed to be highly reliable and redundant, with the main and service systems being able to provide backup power to each other in case of a failure. The emergency system is designed to provide power to critical systems in the event of a complete loss of power from the main and service systems. The electrical systems also include various safety features, such as circuit breakers and surge protectors, to prevent damage to the ship’s systems and ensure the safety of the crew.

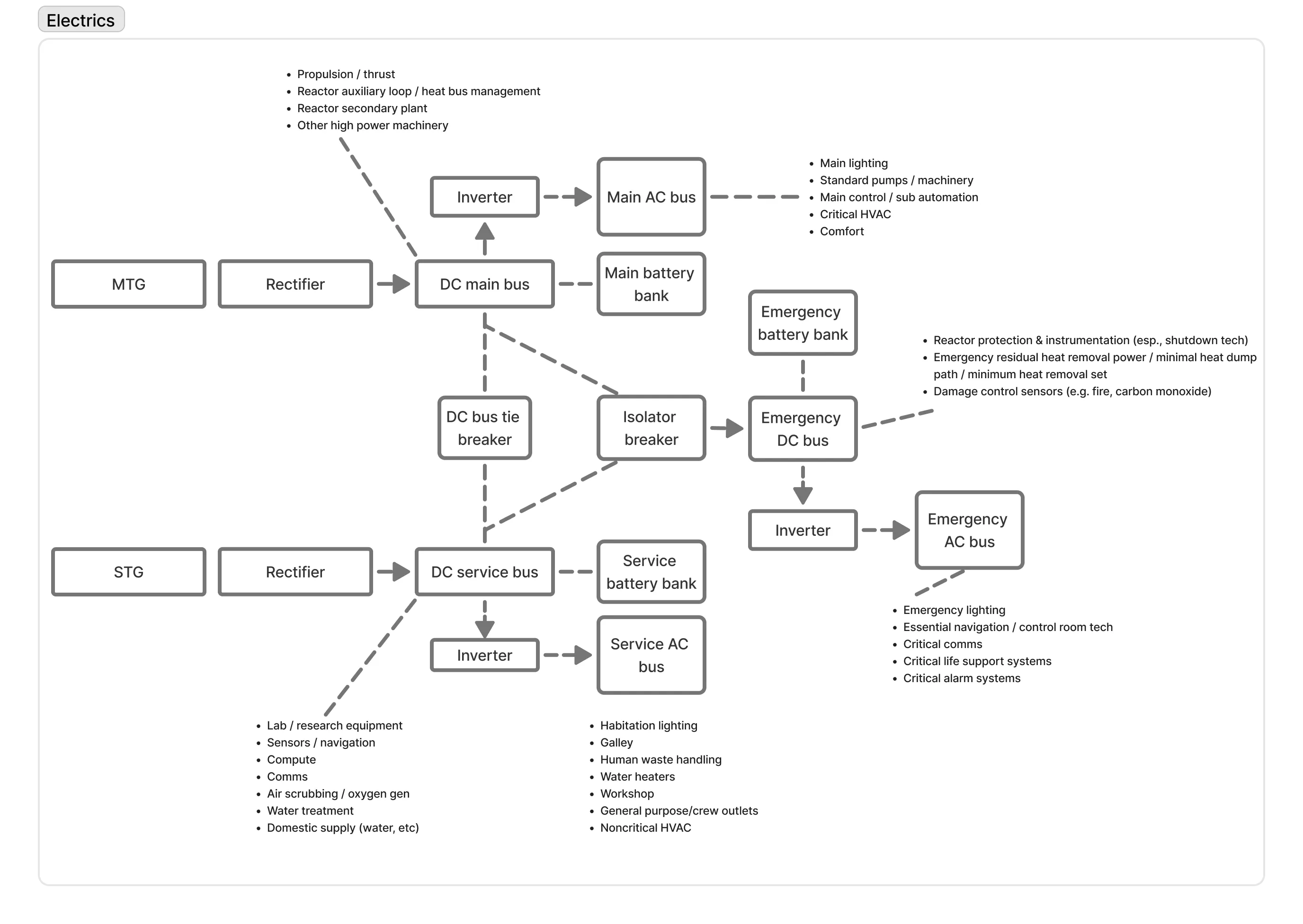

The electrical systems use rectifiers to convert the variable frequency AC power generated by the turbines into DC power for distribution to the ship’s systems. The rectifiers are designed to be highly efficient and can handle the variable frequency power from the turbines without any issues. The DC power is then distributed to the various systems on the ship, such as propulsion, lighting, and life support, through a network of cables and switchboards. The electrical systems also include inverters that can convert DC power back into AC power for systems that require it, such as certain types of motors and equipment. Overall, the electrical systems of the Meridian Basal are designed to be robust, efficient, and reliable, ensuring that all of the ship’s systems have the power they need to operate effectively.
